China High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C) wholesale

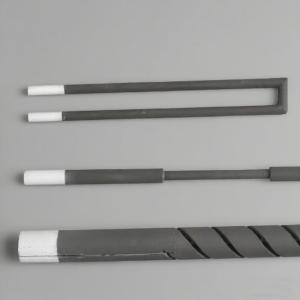

High-Temperature U-Shape Silicon Carbide (SiC) Heating Elements (Up to 1400~1500°C)

Name: HighTemperature UShape Silicon Carbide SiC Heating Elements Up to 14001500C
Brand: KEGU
Price: 200 USD

Ask Latest Price

Video Channel

Brand Name :KEGU

Place of Origin :China

Price :200-500 yuan/kg

Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability :2,000 pcs/month

Packaging Details :Strong wooden box for Global shipping

Model Number :Customizable

Material :SiC

Composition:SiC :＞85%

Color :Black

Density :2.5~2.6g/cm³

Max. Service Temp :1400~1500℃

Flexural Strength :>300kg/cm2

Size :Customized

Heat Conduction :10-14 M.hr.℃

Resistivity :600～1400 mm2/m

Tensile Strength :>150kg/cm2

Max. Service Temp. :1500℃

Linear Thermal Expansion Coefficient (20-1500℃) :5.2×10⁻⁶/℃

Contact Now

Add to Cart

View Product Description

Description:

Our U-Shape Silicon Carbide (SiC) heating elements are engineered for extreme heat environments, offering reliable and durable performance in industrial high-temperature applications. With a maximum operating temperature of 1500°C, they are ideal for electric furnaces and heating systems across various industries.

Features:

High-Purity Material: Made from select green SiC powder ensuring top-quality performance.
High-Density Structure: Manufactured using a 500T press machine for uniform density and extended service life.
Optimized Resistance Design: Excellent resistance gradient between heating zone and cooling zone prevents overheating at terminals, protecting furnace integrity.
Advanced Oxidation Protection: A specialized protective coating on the heating zone significantly enhances antioxidant properties, prolonging element lifespan.
Customizable Designs: Available in various standard sizes and geometries, with full customization options.

Available Types:

Straight Rod (GD type)
Dumbbell Type (GC type)
U-Shape (U type)
W-Shape (W type)
Single Spiral (SD type)
Double Spiral (SG type)

Ordering Information (Please Provide the Following Details):

To ensure optimal performance and perfect fit for your application, please confirm these specifications when ordering:

Element Type (e.g., U-type, W-type, etc.)
Outer Diameter (OD)
Heating Zone Length (HZ)
Cooling Zone Length (CZ)
Overall Length (OL)
Resistance Requirements (if specific needed)
Center Distance (For U-type and W-type elements)

Note: All elements can be custom-designed to meet your specific process requirements and equipment specifications.
